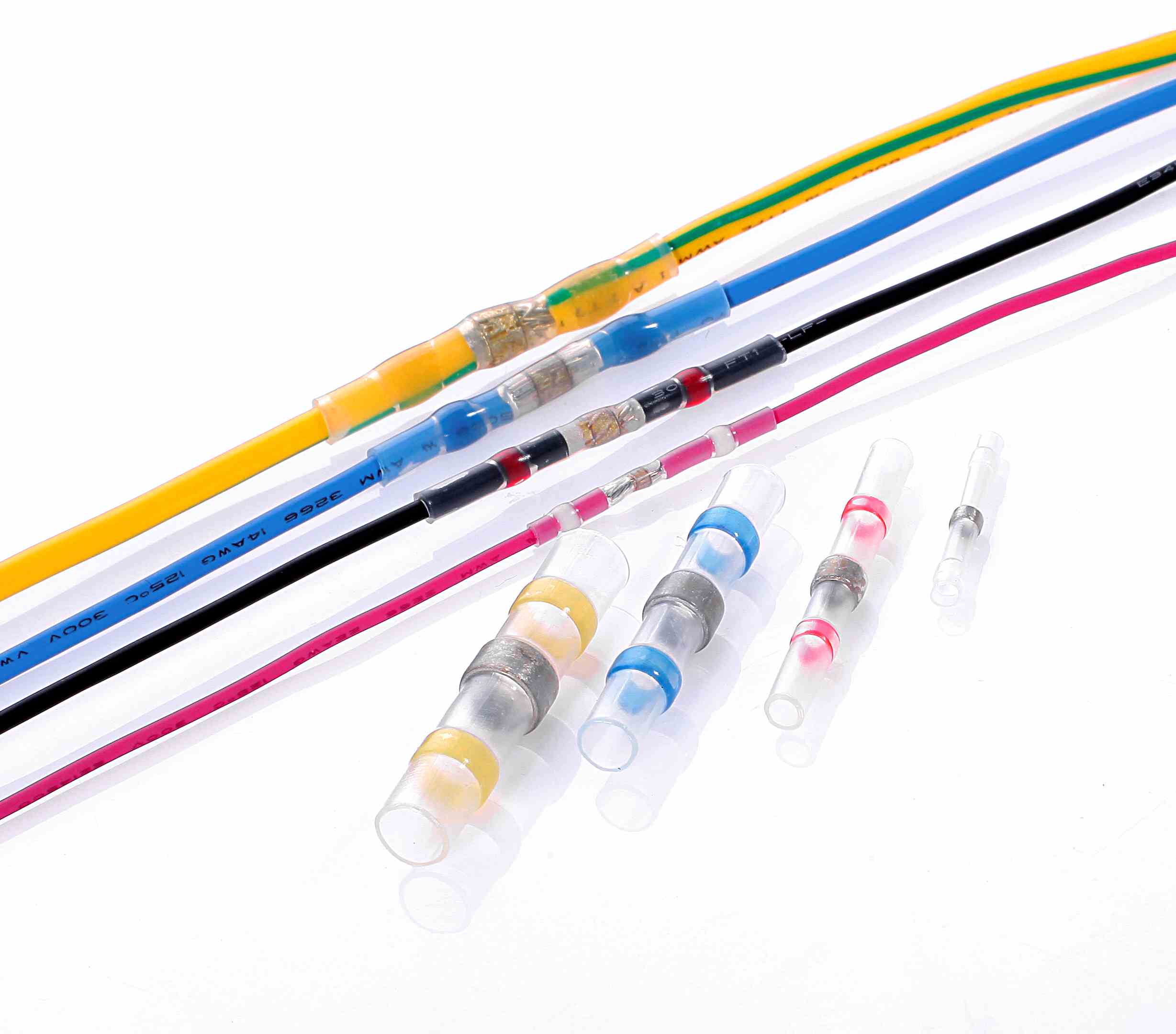

SST-R125℃Solder sleeve wire splices
SST-R125℃Solder sleeve wire splices
Application
One piece design，it consists of transparent heat shrinkable sleeve and fluxed solder. Provides good insulation performance and reduce the installation costs.It is coated with color hot-melt adhesive on both ends of the heat shrinkable tube，it is very convenient use the presice wire dimension.
Characteristics
Shrinking ratio2:1
Waterproof for wiring splices
Transparent sleeve provides precise inspection
Easy control soldering process
Operating temperature range
Operating temperature : -55℃～125℃
Minimum shrink temperature : 80?C
Starting temperature of solder melt: 115?C
Complete melting temperature of solder：155℃
Technical Indicators
Operating Temperature | -55℃～+125℃ |
Shrinking temperature | >115℃ |
Dielectric strength | 0.6 KV |

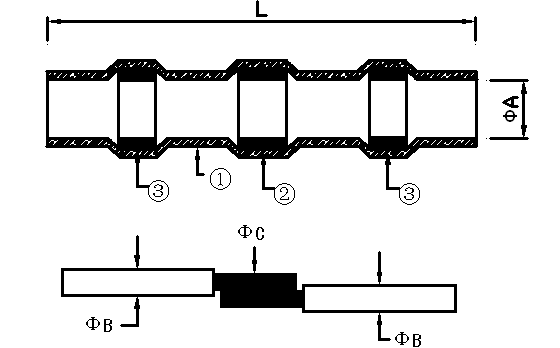

Product Dimensions
Part No. | Product Dimensions | Wire Dimensions |
Wire Range | Color | ||||
A(min.) | L(min.) | B(min.) | B＆C (max.) | C(min.) | A.W.G | mm2 | ||
SST-R11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24 | 0.25-0.34 | White |
SST-R21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18 | 0.5-1.0 | Red |
SST-R31 | 4.7 | 40 | 2.3 | 4.7 | 2.0 | 16-14 | 1.5-2.5 | Blue |
SST-R41 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10 | 4.0-6.0 | Yellow |
① Heat shrinkable tubing
② Low temperature solder sleeve
③ Waterproof hot melt adhesive
